GeoHold® Pro

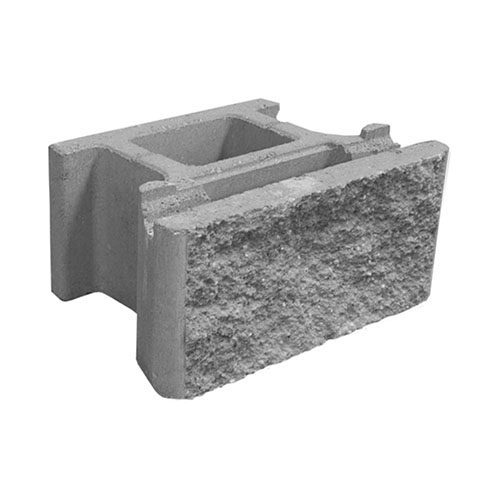

Inspired by a top contractor in California, the GeoHold® Pro is designed to meet specific geogrid requirements for active seismic regions. The innovative block design includes a front channel that allows for the addition of 3/4″ pipe to create a double layer, mechanical grid connection. Combined with a locator system that creates a near-vertical wall, the GeoHold Pro is designed to fit any retaining wall application and increase installation speed.

Features & Benefits

  • Can be installed as a gravity wall or geogrid-reinforced wall.
  • Weighing only 54 lbs., this 1 square foot block maximizes installation and shipping efficiencies
  • Front lug design produces a 9/16″ per unit setback for a 4° system batter
  • Cores can accommodate light fencing when combined with additional engineered elements
  • Ideally situated for retaining walls less than 15 feet tall
  • Can be used to build gravity walls up to 3′ 4″high*, including the buried course
  • Minimum outside radius, measured on the top course to the front of the units: 4 feet
  • Minimum inside radius, measured on the base course to the front of the units: 6 feet

Please refer to this page for information regarding Precautionary Statement & California’s Proposition 65.

Displaying product options available in your project location

Downloadable Resources
Select the resources you’re interested in accessing. You can either download or share with a custom link.
0 Files Selected
0 Bytes
clear all
Need something else? We’re here to help with more resources or any questions. Talk to an Expert
    • GeoHold Pro – CAD Details
      10.74MB | .ZIP2.99MB | .DWG

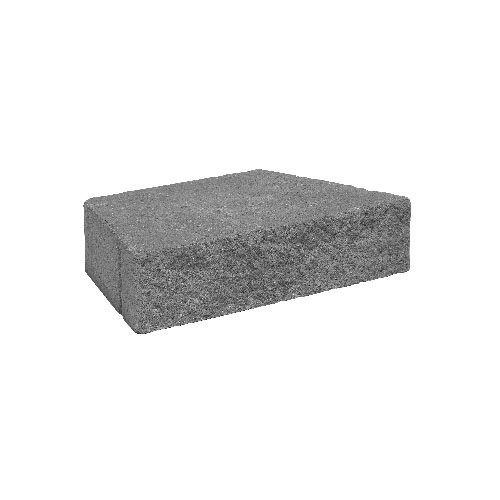

    • GeoHold Pro Typical Capping – PDF Detail
      190.48KB | .PDF
    • GeoHold Pro Typical Base Preparation – PDF Detail
      271.40KB | .PDF
    • GeoHold Pro Typical Base Step-up – PDF Details
      194.60KB | .PDF
    • GeoHold Pro Typical Reinforced Cross Section – PDF Detail
      244.97KB | .PDF
    • GeoHold Pro Typical Gravity Cross Section – PDF Detail
      192.33KB | .PDF
    • GeoHold Pro Typical Excavation Oversizing – PDF Detail
      201.78KB | .PDF
    • GeoHold Pro Typical Fence Cross Section – PDF Detail
      286.90KB | .PDF
    • GeoHold Pro Typical Fence Section with Sleev-It – PDF Detail
      356.46KB | .PDF
    • GeoHold Pro Typical Guard Rail Section – PDF Detail
      283.59KB | .PDF
    • GeoHold Pro Typical Terraced Wall Cross Section – PDF Detail
      317.40KB | .PDF
    • GeoHold Pro Typical Terraced Wall Connection – PDF Detail
      430.29KB | .PDF
    • GeoHold Pro Typical Cross Section with Sidewalk – PDF Detail
      262.70KB | .PDF
    • GeoHold Pro Typical Cross Section with Crest Slope – PDF Detail
      243.96KB | .PDF
    • GeoHold Pro Typical Drainage Swale Cross Section – PDF Detail
      270.10KB | .PDF
    • GeoHold Pro Typical Shoreline Cross Section – PDF Detail
      380.46KB | .PDF
    • GeoHold Pro Typical Groundwater Intrusion Cross Section – PDF Detail
      291.12KB | .PDF
    • GeoHold Pro Typical Drain Pipe Through Wall Face – PDF Detail
      260.08KB | .PDF
    • GeoHold Pro Typical Drain Pipe Through Toe Slope – PDF Detail
      289.17KB | .PDF
    • GeoHold Pro Typical Cross Section with Parallel Utilities – PDF Detail
      222.29KB | .PDF
    • GeoHold Pro Typical Utilities Below Wall – PDF Detail
      357.13KB | .PDF
    • GeoHold Pro Typical Small Utilities Through Wall – PDF Detail
      299.66KB | .PDF
    • GeoHold Pro Typical Large Utilities Through Wall – PDF Detail
      303.00KB | .PDF
    • GeoHold Pro Typical Drop Structure Behind Wall – PDF Detail
      373.37KB | .PDF
    • GeoHold Pro Typical Alternate Drop Structure Behind Wall – PDF Detail
      147.23KB | .PDF
    • GeoHold Pro Typical Wall Abutting Structure – PDF Detail
      300.89KB | .PDF
    • GeoHold Pro Typical Reinforcement Connection – PDF Detail
      190.89KB | .PDF
    • GeoHold Pro Typical Outside Curve – PDF Detail
      249.69KB | .PDF
    • GeoHold Pro Typical Inside Curves – PDF Detail
      170.86KB | .PDF
    • GeoHold Pro Typical Outside Corners – PDF Detail
      466.11KB | .PDF
    • GeoHold Pro Typical Inside Corners – PDF Detail
      475.62KB | .PDF
    • GeoHold Pro Typical Outside Angles – PDF Detail
      207.22KB | .PDF
    • GeoHold Pro Typical Inside Angles – PDF Detail
      231.82KB | .PDF
    • GeoHold Pro Straight Unit – PDF Detail
      151.61KB | .PDF
    • GeoHold Pro – National Cut Sheet
      527.16KB | .PDF
    • SRW Quick Reference Install Guide
      541.01KB | .PDF
