Commercial Retaining Walls
GeoHold®

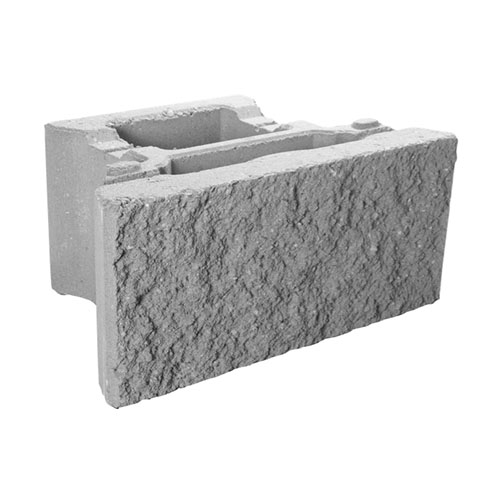

GeoHold® is an innovative block design which includes a front channel mechanical grid connection. The square foot block maximizes installation and shipping efficiencies. Cores can accommodate light fencing when combined with additional engineered elements. Top course walls can be installed upside-down for easy capping.
Features & Benefits
- Can be installed as a gravity wall or geogrid reinforced wall
- Weighing only 54 lbs., this 1 square foot block maximizes installation and shipping efficiencies
- Front lug design produces a 5/8″per unit setback for a 4o system batter
- Cores align for easy filling
- Cores can accommodate light fencing when combined with additional engineered elements
- Minimum outside radius of 4′
- Minimum inside radius of 6′
Please refer to this page for information regarding Precautionary Statement & California’s Proposition 65.
Displaying product options available in your project location
Downloadable Resources
Select the resources you’re interested in accessing. You can either download or share with a custom link.
0 Files Selected
0 Bytes
Need something else? We’re here to help with more resources or any questions. Talk to an Expert
-
-
GeoHold – CAD Details7.92MB | .ZIP2.44MB | .DWG
-
GeoHold Typical Capping – PDF Detail110.34KB | .PDF
-
GeoHold Typical Base Preparation – PDF Detail257.09KB | .PDF
-
GeoHold Typical Base Step-up – PDF Detail187.02KB | .PDF
-
GeoHold Typical Reinforced Cross Section – PDF Detail171.82KB | .PDF
-
GeoHold Typical Gravity Cross Section – PDF Detail141.48KB | .PDF
-
GeoHold Typical Excavation Oversizing – PDF Detail151.24KB | .PDF
-
GeoHold Typical Fence Cross Section – PDF Detail149.47KB | .PDF
-
GeoHold Typical Fence Section with Sleev-It – PDF Detail151.97KB | .PDF
-
GeoHold Typical Guard Rail Section – PDF Detail148.79KB | .PDF
-
GeoHold Typical Terraced Wall Cross Section – PDF Detail228.86KB | .PDF
-
GeoHold Typical Terraced Wall Connection – PDF Detail344.04KB | .PDF
-
GeoHold Typical Cross Section with Sidewalk – PDF Detail196.14KB | .PDF
-
GeoHold Typical Cross Section with Crest Slope – PDF Detail175.71KB | .PDF
-
GeoHold Typical Drainage Swale Cross Section – PDF Detail155.13KB | .PDF
-
GeoHold Typical Shoreline Cross Section – PDF Detail260.76KB | .PDF
-
GeoHold Typical Groundwater Intrusion Cross Section – PDF Detail184.61KB | .PDF
-
GeoHold Typical Drain Pipe Through Wall Face – PDF Detail174.19KB | .PDF
-
GeoHold Typical Drain Pipe Through Toe Slope – PDF Detail254.93KB | .PDF
-
GeoHold Typical Cross Section with Parallel Utilities – PDF Detail156.94KB | .PDF
-
GeoHold Typical Utilities Below Wall – PDF Detail264.17KB | .PDF
-
GeoHold Typical Small Utilities Through Wall – PDF Detail198.03KB | .PDF
-
GeoHold Typical Large Utilities Through Wall – PDF Detail206.15KB | .PDF
-
GeoHold Typical Drop Structure Behind Wall – PDF Detail236.47KB | .PDF
-
GeoHold Typical Alternate Drop Structure Behind Wall – PDF Detail111.10KB | .PDF
-
GeoHold Typical Wall Abutting Structure – PDF Detail224.58KB | .PDF
-
GeoHold Typical Reinforcement Connection – PDF Detail116.59KB | .PDF
-
GeoHold Typical Outside Curve – PDF Detail321.73KB | .PDF
-
GeoHold Typical Inside Curves – PDF Detail122.19KB | .PDF
-
GeoHold Typical Outside Corners – PDF Detail381.88KB | .PDF
-
GeoHold Typical Inside Corners – PDF Details433.86KB | .PDF
-
GeoHold Typical Outside Angles – PDF Detail122.86KB | .PDF
-
GeoHold Typical Inside Angles – PDF Detail130.89KB | .PDF
-
GeoHold Straight Unit – PDF Detail125.04KB | .PDF
-
-
-
GeoHold – National Cut Sheet463.90KB | .PDF
-
-
-
SRW Quick Reference Install Guide541.01KB | .PDF
-
