Commercial Concrete Pavers
Geometric Shapes

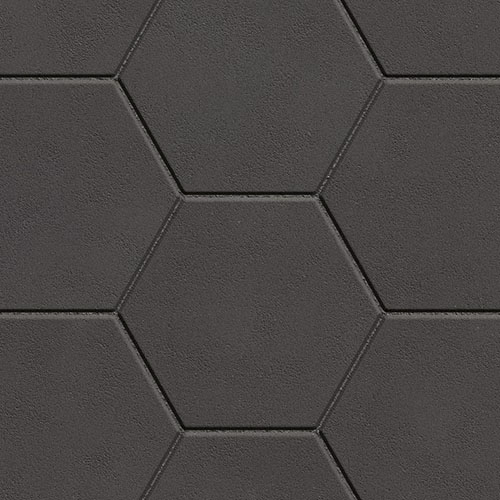

Designed in 3-inch increments, geometric shapes can be used alone or easily combined with Origins™ or Dimensions™ paver lines to add visually interesting borders, accents or inlays. Regionally available shapes include hexagons, diamonds and two different sizes of parallelograms.
Features & Benefits:
- True installed dimensions for optimal layout.
- Clean lines and a modern architectural appearance.
- Can be utilized to construct an ADA-compliant pavement.
- 3 mm micro-chamfer width to minimize vibration and enhance wheelchair comfort.
- Increased options for creative patterns.
- Sizes compatible with Dimensions™ and Origins™ stone-textured line.
Please refer to this page for information regarding Precautionary Statement & California’s Proposition 65.
Downloadable Resources
Select the resources you’re interested in accessing. You can either download or share with a custom link.
0 Files Selected
0 Bytes
Need something else? We’re here to help with more resources or any questions. Talk to an Expert
-
-
ICP Paver Details Collection8.50MB | .PDF
-
Belgard Standard Paving Detail – Sand Set on Concrete Base1.35MB | .ZIP686.47KB | .PDF
-
Belgard Standard Paving Detail – Sand Set on Aggregate Base1.35MB | .ZIP614.81KB | .PDF
-
Belgard Standard Paving Detail – Sand Set on Existing Asphalt Base1.43MB | .ZIP688.33KB | .PDF
-
Belgard Standard Paving Detail – Bituminous Set on Concrete Base1.37MB | .ZIP671.30KB | .PDF
-
Belgard Standard Paving Detail – Curb Transition Bituminous Set on Concrete Base2.81MB | .ZIP775.21KB | .PDF
-
Belgard Standard Paving Detail – Curb Transition Sand Set on Aggregate Base1.23MB | .DWG708.37KB | .PDF
-
Belgard Standard Paving Detail – Laticrete Mortar Set on Concrete Base2.28MB | .ZIP162.13KB | .PDF
-
Belgard Standard Paving Detail – Aggregate Set on Roof Deck Over Uninhabited (Open) Space1.48MB | .ZIP651.28KB | .PDF
-
Belgard Standard Paving Detail – Aggregate Set on Roof Deck Over Inhabited (Heated) Space1.53MB | .ZIP655.41KB | .PDF
-
Belgard Standard Paving Detail – Sand Set on Roof Deck Over Uninhabited (Open) Space1.56MB | .ZIP624.50KB | .PDF
-
Belgard Standard Paving Detail – Sand Set on Roof Deck Over Inhabited (Heated) Space1.61MB | .ZIP601.34KB | .PDF
-
Belgard Standard Paving Detail – Border Course Details1.60MB | .ZIP322.82KB | .PDF
-
Belgard Standard Paving Detail – Paver Installation Around Utility Structures1.63MB | .ZIP361.10KB | .PDF
-
Belgard Standard Paving Detail – Paver Installation Around Valve Boxes1.64MB | .ZIP337.76KB | .PDF
-
Belgard Standard Paving Detail – Edge Restraint Details – Sand Set1.76MB | .ZIP578.02KB | .PDF
-
Belgard Standard Paving Detail – Edge Restraint Details – Bituminous Set1.75MB | .ZIP464.56KB | .PDF
-
Belgard Standard Paving Detail- Sand Set on Aggregate Base with Staked Edge Restraint2.27MB | .ZIP192.91KB | .PDF
-
Belgard Standard Paving Detail – Aggregate Base Snowmelt System932.67KB | .ZIP168.27KB | .PDF
-
-
-
Geometric Shapes – National Cut Sheet381.73KB | .PDF
-
Geometric Shapes – Canadian Cut Sheet682.12KB | .PDF
-
-
-
Belgard ICP Operation and Maintenance Guideline2.30MB | .PDF
-
Interlocking Concrete Pavers Construction Checklist335.87KB | .PDF
-
Interlocking Concrete Pavers Bituminous Sand Set Construction Checklist547.18KB | .PDF
-
Bituminous Set Inspection and Maintenance147.50KB | .DOC
-
-
-
Concrete Paving Slab Sand Set on DGA47.16KB | .DOCX
-
ICP Sand Set on DGA45.17KB | .DOCX
-
ICP Bitumen Set44.76KB | .DOCX
-
ICP Sand Set on Concrete or Asphalt Base40.91KB | .DOCX
-
-
-
Hatch Pattern Download Instructions223.83KB | .PDF
-
Parallelogram 3×12 Hexagon Pattern87.39KB | .JPG1.64KB | .PAT
-
Parallelogram 3×12 Stack Bond84.89KB | .JPG0.99KB | .PAT
-
Parallelogram 3×12 Running Bond57.36KB | .JPG995.00B | .PAT
-
Parallelogram 6×18 Running Bond38.03KB | .JPG995.00B | .PAT
-
Parallelogram 6×18 Stack Bond50.50KB | .JPG0.98KB | .PAT
-
Parallelogram 6×18 Hexagon Pattern54.01KB | .JPG1.62KB | .PAT
-
Diamond 12 Box Pattern42.21KB | .JPG1.17KB | .PAT
-
Diamond 12 Lozenge Pattern49.95KB | .JPG875.00B | .PAT
-
Diamond 12 Stack Bond38.25KB | .JPG940.00B | .PAT
-
Hexagon Running Bond38.67KB | .JPG995.00B | .PAT
-
™">
™">
™">
™">
