Commercial Retaining Walls
Diamond Pro® 9D

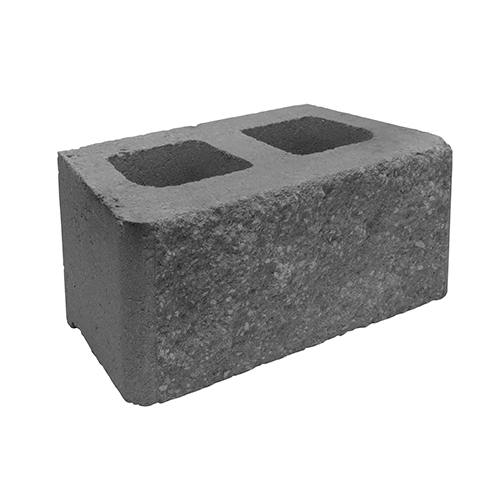

Diamond Pro 9D segmental retaining wall blocks are lightweight and easy to handle. Well-suited for walls, steps, planters, and patios.
Features & Benefits
- All system components are standard-split in-line.
- Rear lip locators easily establish a uniform wall batter.

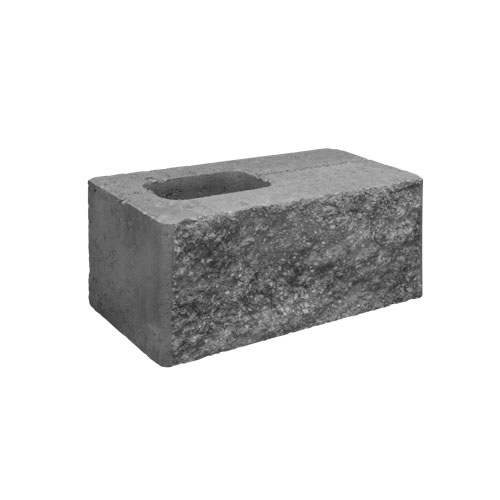

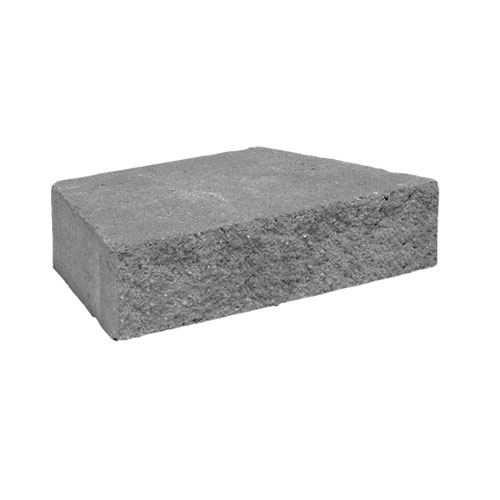

- A matching cap completes the system.

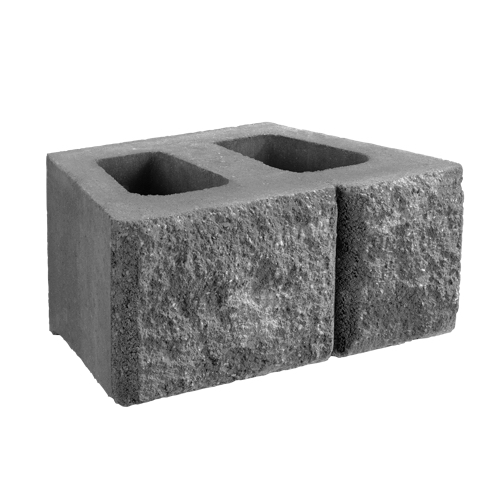

- Face styles available are Standard and virtual joint styles.
- Gravity walls can be built up to 2.5 feet high, including buried course.
- Taller walls can be built by incorporating geosynthetic reinforcement when designed by a qualified engineer.
- Minimum outside radius, measured on the top course to the front of the wall units: 4 feet.
- Minimum inside radius, measured on the base course to the front of the wall units: 6 feet.
