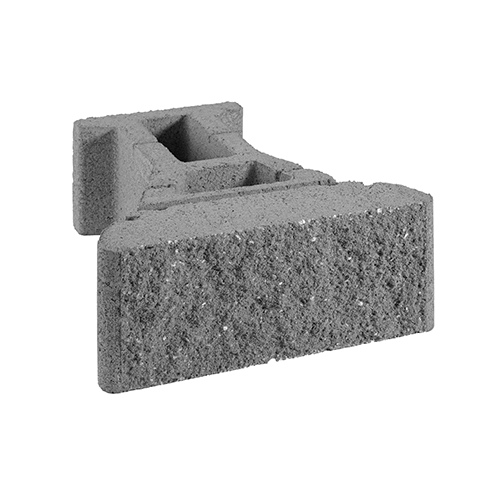

Diamond Pro® PS 21D

Architects and engineers choose the Diamond Pro® PS retaining wall systems to create flexible, cost-effective solutions for a broad range of large commercial, municipal and residential retaining wall projects. The 21” deep block provides greater wall depth for added stability.

Diamond Pro® PS 21D utilizes a pin system as a location device in installation.

Features & Benefits

Pin system installation for easy alignment and setback
Offered as a complete system with matching corner and cap
Interlocking tails offer the potential for 36 1/2″ wall depth
Can be used with 12″, standard depth Diamond Pro® PS
One square foot of wall face per block
System setback/batter: Near Vertical or 1″/7.1º
Maximum gravity wall height of 6 feet* using a single depth unit with 7.1-degree batter

Please refer to this page for information regarding Precautionary Statement & California’s Proposition 65.

Request a Sample DOWNLOAD RESOURCES

Project Specs

Applications Walls Collection Natural Metropolitan Features Split Stone Look With Greater Wall Depth For Added Stability Details Pin system installation for easy alignment and setback

Applications

Walls

Collection

Natural

Metropolitan

Features

Split Stone Look With Greater Wall Depth For Added Stability

Details

Pin system installation for easy alignment and setback

Displaying product options available in your project location

Show all products

Oxford

Sheffield

Timberland

21D

8x18x21"

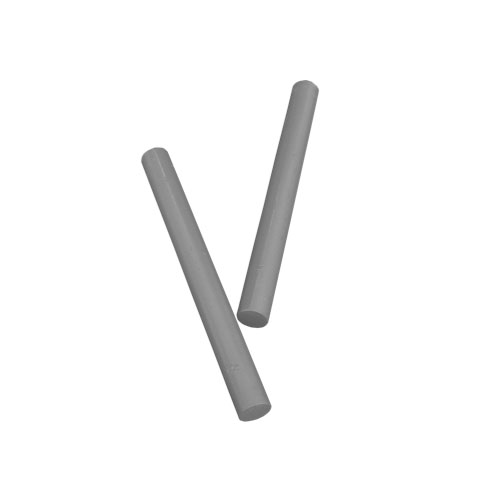

Fiberglass Pins

5" L x .5" diam. sold separately
