Commercial Retaining Walls Heritage Collection

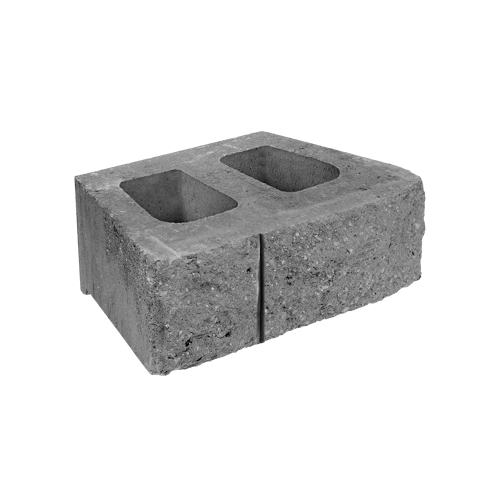

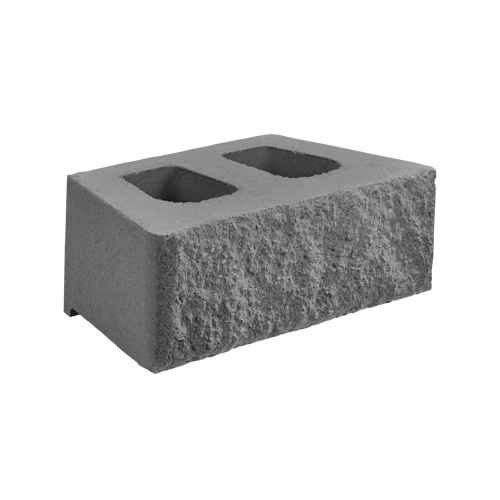

Diamond® 9D

The dependability of Diamond® retaining wall systems has made them the preferred choice for decades. The Diamond® 9D retaining wall system has the advantages of a lighter weight and softened contours.

Features and Benefits:

  • All system components are standard-split in-line.
  • Rear lip locators easily established a uniform wall batter.
  • A matching cap and corner completes the system.
  • Build gravity walls up to 3 feet high, including the buried course.
  • Taller walls can be built using geosynthetic reinforcement when designed by a qualified engineer.
  • Minimum inside radius, measured on the base course to the front of the units: 6 feet.
  • The rear lip establishes a 1 1/8″ setback for a 10.6 degree system batter.

*All colors and/or products may not be available in all areas. Please inquire for availability and special order options.

Please refer to this page for information regarding Precautionary Statement & California’s Proposition 65.
