Belair Wall^®

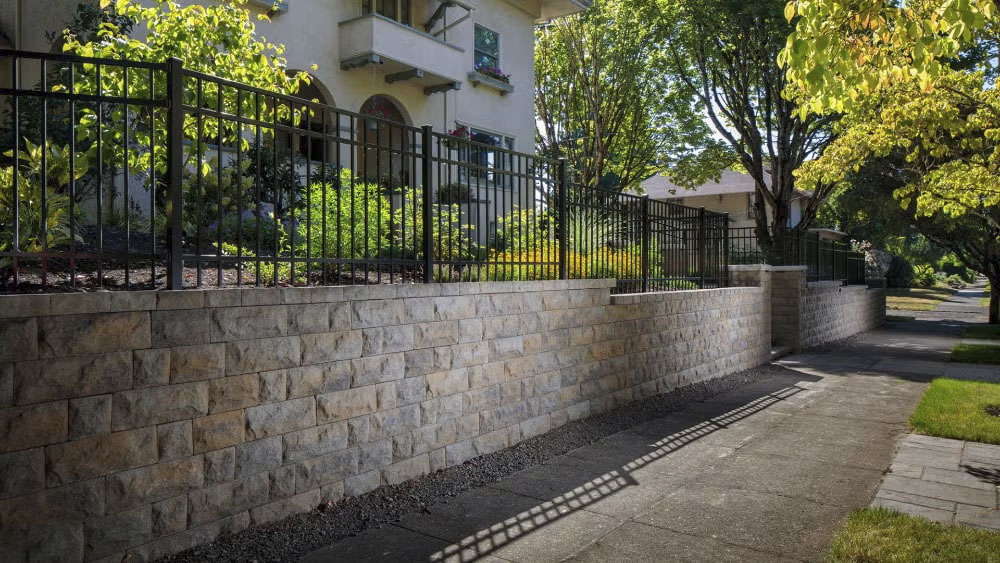

Belair Wall offers a sophisticated appearance of hand-chiseled stone is brought to life with an irregular surface that adds depth and visual interest for a dynamic look.

Features & Benefits:

Freestanding & gravity wallscan be built up to 3 feet high, including buried course.
Taller walls can be built using geosynthetic reinforcement when designed by a qualified engineer.
Rear-lip on retaining wall block makes installation fast and accurate.
Freestanding Walls: 1″/9.5°Setback/System batter.
Minimum outside radius, measured on the top course to the front of the units: 4 feet.
Minimum inside radius, measured on the base course to the front of the units: 8 feet.

Please refer to this page for information regarding Precautionary Statement & California’s Proposition 65.

Request a Sample Download Resources

Show:

Product options available in your project location

All product options

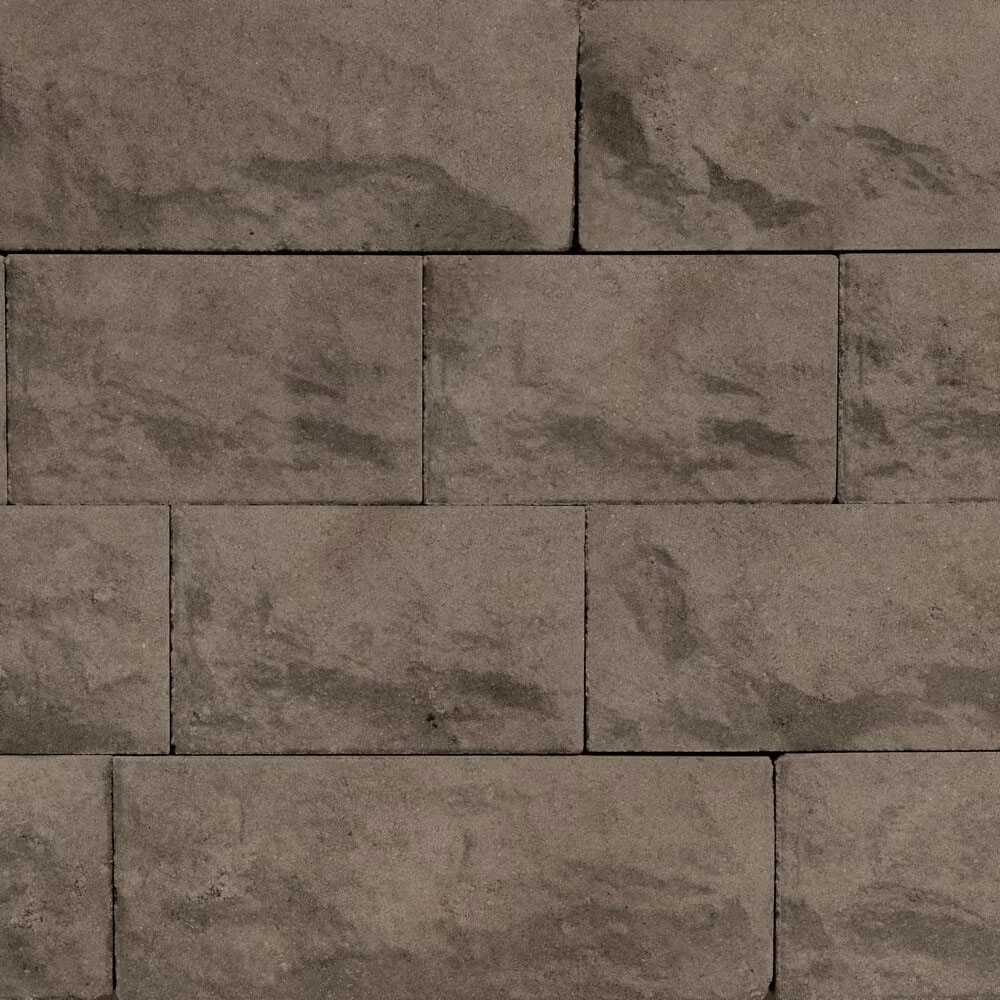

Hickory

Newport Gray

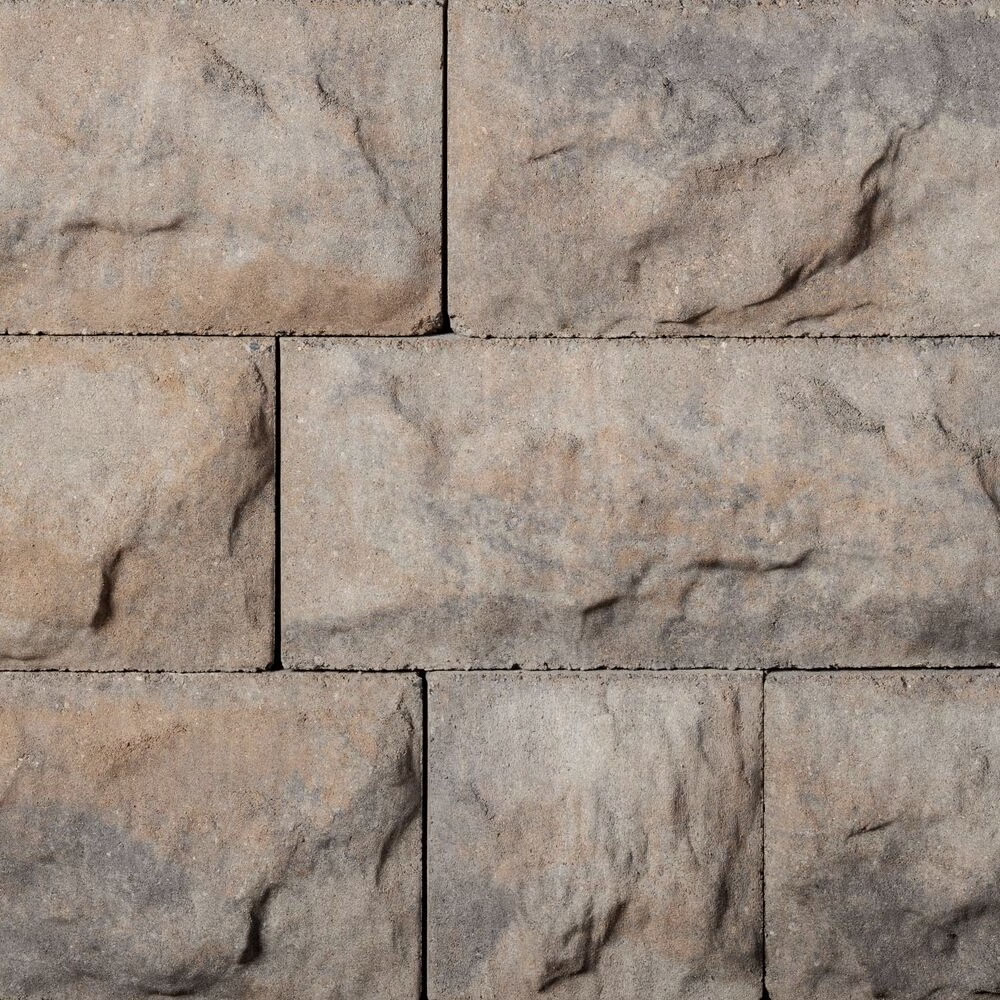

Silex Blend

Belair Retaining Wall

6 x 6 x 8" 6 x 10 x 8" 6 x 16 x 8"
