Pattern Versatility

Create Your Own Patterns

The following are examples of some popular commercial paver patterns.

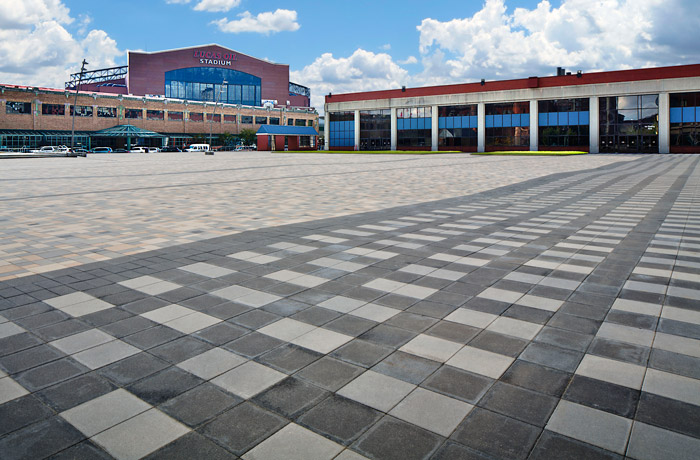

Commercial Paver Patterns & Designs
Create Your Own Commercial Paver Patterns

STEP 1: Select Paver Shape

Typically there is a look or feel that you want to express in an area, and there is nothing better to help with that than the laying pattern of the pavement surface. Stack or running bonds patterns create a structural elegance; enlarged herringbone patterns can utilize a lot of different shapes’ and block patterns mask the repeat layout, creating a random appearance plus providing increased interlock (necessary for vehicular applications). Start off by selecting the general shape that best fits your intent, or create your own unique repeatable pattern such as the one shown adjacent. Make sure the general shape is repeatable before proceeding.

Vehicular & Pedestrian Concrete Paver Patterns

STEP 2: Select Scale of Pattern

Now select the scale of the pattern, keeping in mind (A) the size of the area – larger patterns can be used in larger areas, and (B) the application. For vehicular applications, it is also important to keep lines less than 4 feet in length to provide proper interlock.

Selecting the Scale of the Paver Pattern

STEP 3: Fill the Shape

Once you have decided on the scale of the laying pattern, it is time to fill the shape. The following are examples of the previous pattern with different sized pieces – note that even slight changes in the pieces used can alters the appearance dramatically.

Adding Colors, Textures & Borders to Commercial Concrete Pavers

Step 4: Add Colors, Textures & Borders

Adding colors, textures, and borders is where the true versatility is realized. The available concrete paver design options are only limited by your own imagination.

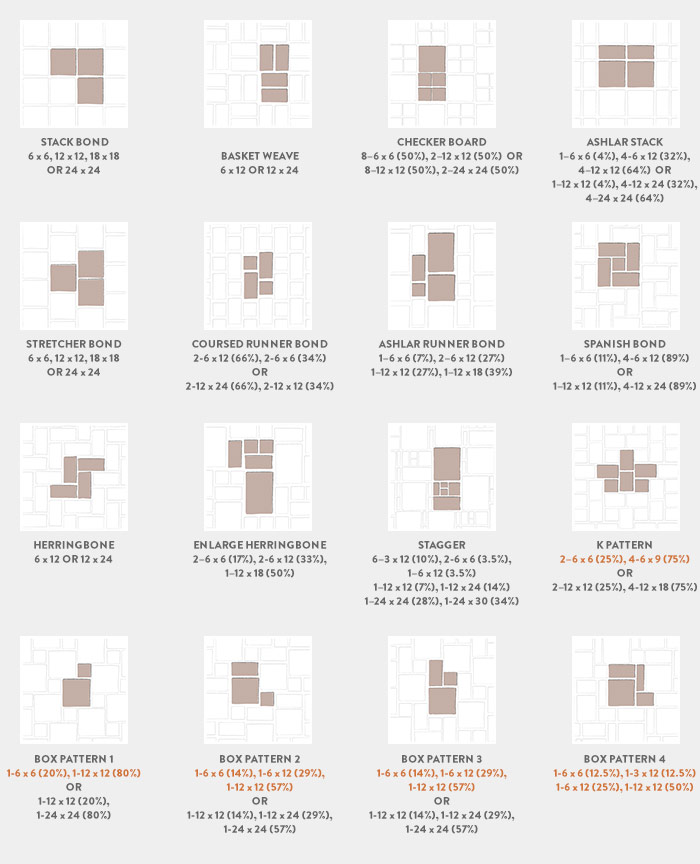

Paver Patterns for Traditional Moduline & Aqualine Series

Belgard’s Moduline and Aqualine series were developed to create the ultimate in paver design pattern versatility. All units are based on imperial 3-inch or 4-inch dimensional increments and have a raster / footprint that is exactly as specified, allowing all series pieces to fit together as intended. Add to this the various aesthetic elements – including colors and textures – that are available to create unique paving patterns, accents, highlights and borders – the paver design possibilities are truly endless.

NOTE: What makes a pattern acceptable for vehicular applications is a combination of (A) the pattern has a high degree of interlock, and (B) the sizes involved match the available vehicular products.
